Wireless Solutions

The proliferation of wireless networks has placed increased demands on carriers, wireless professionals and contractors, who install, maintain and troubleshoot wireless communication networks. The majority of problems in wireless network installation and performance often occur within the base station infrastructure, which consists of the cable and antenna system and associated RF connectors. Compounding the problem, cell sites are often located in rural or difficult to access locations.

Designed specifically for carriers, wireless professionals, and contractors who install, maintain and troubleshoot wireless communications networks, Deviser's portfolio of wireless test and measurement products provides all of the necessary measurement functions and performance to accurately diagnose and verify wireless networks in a lightweight, field-proven, handheld instrument.

5G NR Solutions

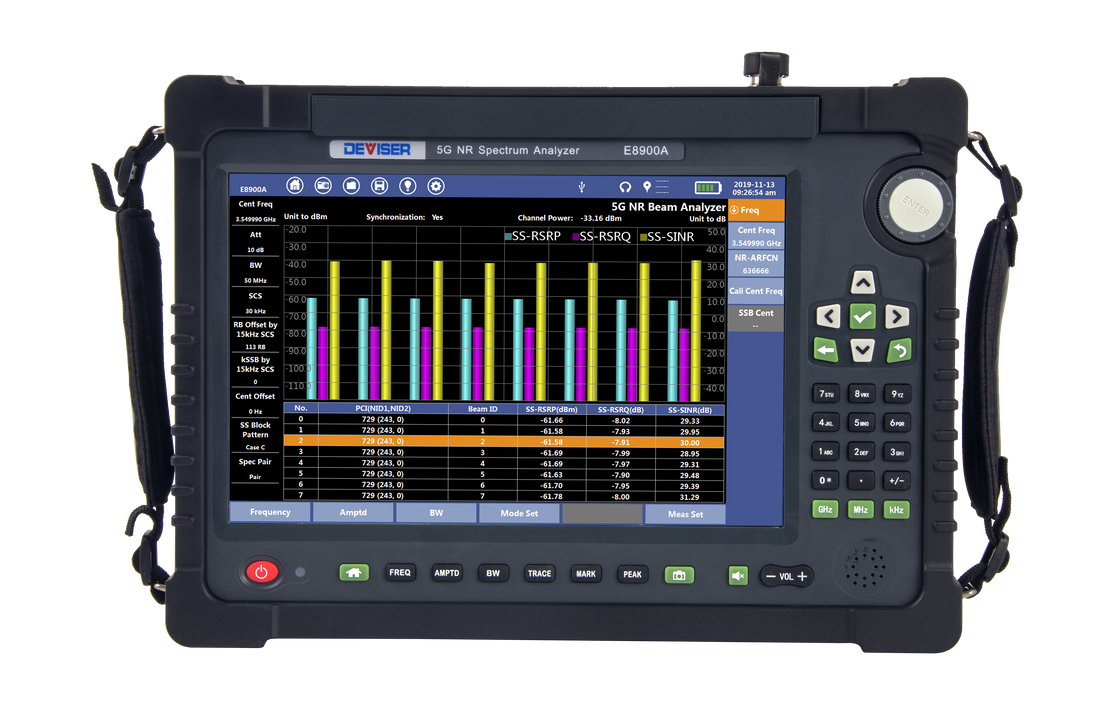

E8900A High-Performance 5G NR Spectrum Analyzer
              (9 kHz to 9 GHz)
  • High-performance handheld spectrum analyzer for construction and maintenance of 5G NR systems
  • High-speed SA analysis, measuring 30 GHz/s @ 7.8 kHz RBW
  • Up to 110MHz real-time analysis bandwidth for 100% interception of signal less than 5ms
  • Test and demodulate 5G NR (FR1), 4G FDD/TDD LTE signals
  • IQ data acquisition
  • Spectrogram, Spectrum Persistence Analysis, Gated Sweep and Coverage Mapping
  • Interference analysis and positioning with Angle-of-Arrival algorithm
  • 10.1" capacitive touchscreen for easy navigation and better visibility
E8900A_Datasheet.pdf
File Size: 3966 kb
File Type: pdf
Download File

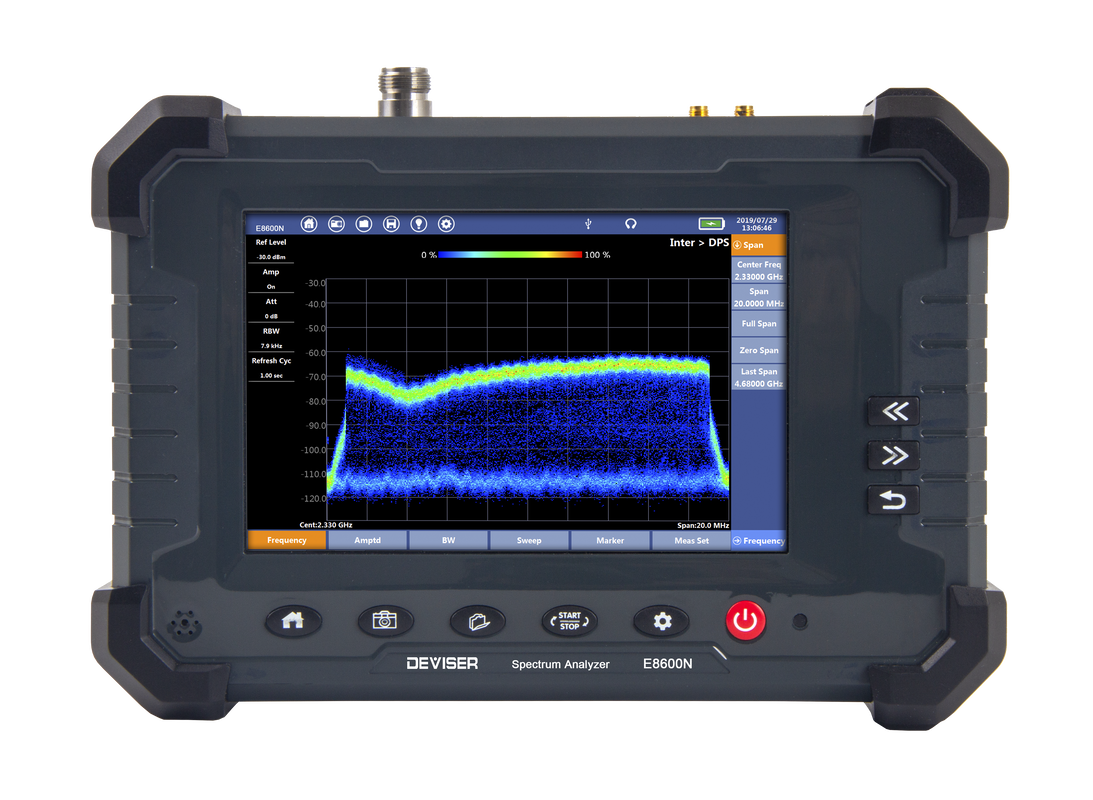

NEW! E8600N 5G NR Handheld Spectrum Analyzer
              (9 kHz to 6 GHz)
  • 20MHz and 100MHz real-time analysis bandwidth to capture hidden signals
  • 5G NR (FR1), 4G FDD/TDD LTE, UMTS analysis
  • Spectrogram, Spectrum Persistence Analysis and Gated Sweep
  • Interference analysis and positioning with Angle-of-Arrival algorithm
E8600N_Datasheet.pdf
File Size: 411 kb
File Type: pdf
Download File

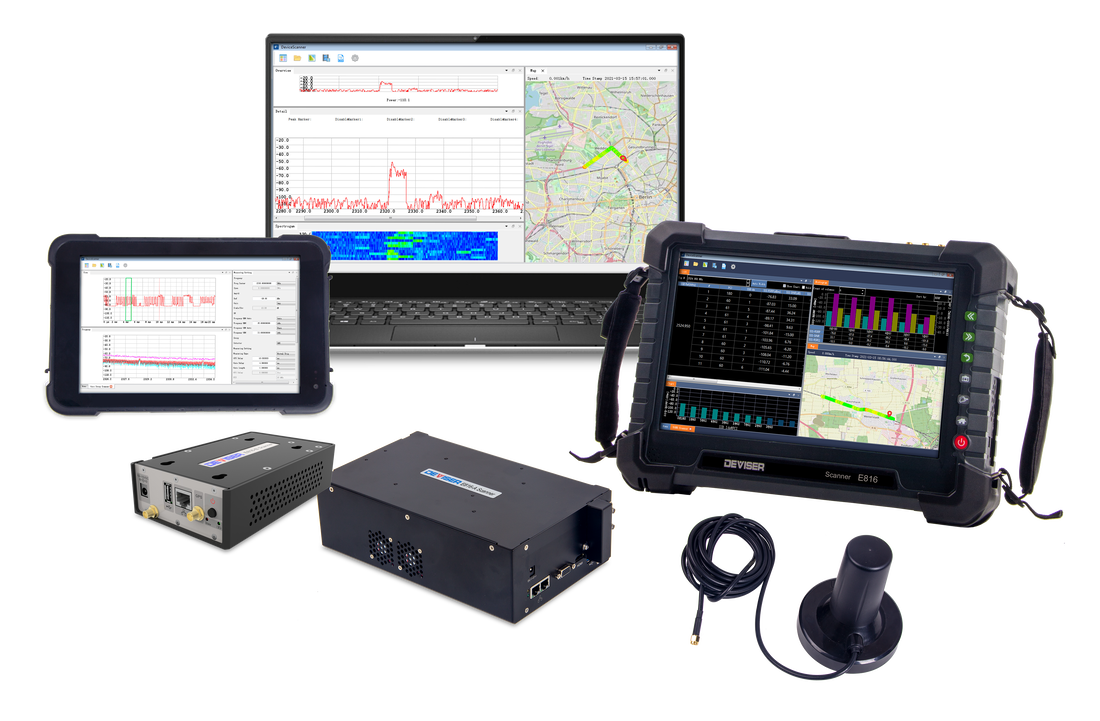

NEW! E816 5G NR Scanning Receiver
              (350 MHz to 6 GHz)
  • Precise planning and design optimization for 5G NR networks
  • PC based post-analysis software
  • Noise signal cleanup for existing and/or new bands
  • 8 frequency bands can be measured simultaneously
  • 4G/5G base station coverage test with maximum 32 frequency points traced in parallel
  • 4G/5G base station spectrum and coverage mapping
  • TDD uplink and downlink spectrum measurement with interference management
E816_Datasheet.pdf
File Size: 433 kb
File Type: pdf
Download File

Electromagnetic Field (EMF) Solutions
NEW! EM860 Frequency & Code Selective EMF Analyzer
              (9 kHz to 9 GHz)
  • Public safety evaluation
  • Spectrum analysis
  • Level recorder
  • Electromagnetic field (EMF) strength measurement
  • 5G NR code selective EMF measurement
  • 4G / LTE code selective EMF measurement
  • 3G UMTS code selective EMF measurement
  • Field EMF scope
  • Rich and powerful work order and data management system
EM860_Datasheet.pdf
File Size: 2297 kb
File Type: pdf
Download File
NEW! EM9N Broadband Electromagnetic Field Meter
              (9 kHz to 40 GHz)
  • High efficiency EMF monitoring than traditional methods
  • Built-in GPS/GSNN receiver, electronics compass, temperature and humidity sensors
  • Scenic and surrounding view with built-in HD camera
  • Operation procedure and log with geographical information
  • Optional 4G SIM card to capture base station ID
  • Auto-generation of drive test data
  • User-defined measurement templates
  • Bluetooth, Wi-Fi and USB-C communication interface
  • Screen capture and measurement recording for public/environment safety law enforcement
  • Cloud based server upload and integration
EM9N_Datasheet.pdf
File Size: 830 kb
File Type: pdf
Download File

Smart Analyzer
NEW! E80 Smart Spectrum Analyzer
              (9 kHz to 6 GHz or 9 GHz)
  • Android operating system
  • Excellent portability in light weight (1kg)
  • One-click measurement of spectrum, channel power, Adjacent Channel Leakage Ratio (ACLR) and Occupied Bandwidth
  • Spectrogram, interference analysis and positioning
E80_Datasheet.pdf
File Size: 2564 kb
File Type: pdf
Download File

4G / LTE Solutions
E7000A-SA RF Analyzer: Cable & Spectrum Analysis
(1 MHz to 4.4 GHz)
The E7000A-SA RF Analyzer combines the cable analyzer and the spectrum analyzer into one handheld unit.  The user can now verify the site's physical infrastructure and characterize the interference in a single rugged instrument.  This reduces CAPEX by combining multiple technologies into one unit and reduces OPEX by shortening the learning curve for using both analysis tools.
E7000SA_Datasheet.pdf
File Size: 362 kb
File Type: pdf
Download File
E7040B/E7060B Cable & Antenna Analyzer (2.2 MHz to 4.4 GHz)
The E7000B Cable and Antenna Analyzer provides an integrated solution that test both RF and fiber-based wireless cell sites, thereby eliminating the need to carry multiple instruments.  All necessary measurement functions and performance are included to accurately diagnose and verify booth RF and Fiber-based feedlines, antenna system and connectors.
E7000B_Datasheet.pdf
File Size: 700 kb
File Type: pdf
Download File
E7000L Cable & Antenna Analyzer ​(2 MHz to 4.4 GHz)
The E7000L Cable & Antenna Analyzer provides all necessary measurement functions and performance to accurately diagnose and verify the site’s cable and antenna system and RF connectors, as well as basic fiber-feedline testing.  Smaller and lighter than the E7000B, the E7000L is ideal for installation of wireless cell sites.
E7000L_Datasheet.pdf
File Size: 1077 kb
File Type: pdf
Download File
E7042B SignalPROFILER (CA: 2 MHz to 4 GHz, SA: 9 kHz to 4 GHz)
The SignalPROFILER combines the power and functionality of cable and antenna system analysis, fiber inspection, spectrum analysis, cellular signal demodulation, interference analysis, signal coverage mapping and RF/Optical power measurements in a single instrument.
E7042B_Datasheet.pdf
File Size: 1036 kb
File Type: pdf
Download File
E7062B SignalPROFILER (CA: 2 MHz to 6 GHz, SA: 9 kHz to 6 GHz)
The SignalPROFILER combines the power and functionality of cable and antenna system analysis, fiber inspection, spectrum analysis, cellular signal demodulation, interference analysis, signal coverage mapping and RF/Optical power measurements in a single instrument.
E7062B_Datasheet.pdf
File Size: 1000 kb
File Type: pdf
Download File
E8000A Spectrum Analyzer ​(9 kHz to 3 GHz)
The E8000 Series of Spectrum Analyzers provide all of the necessary measurement functions and performance to accurately characterize the signal environment in addition to clearing, detecting, identifying and locating signal interference in a lightweight, handheld instrument.
E8000A_Datasheet.pdf
File Size: 700 kb
File Type: pdf
Download File
E8400B Spectrum Analyzer  (9 kHz to 4 GHz)
The E8400B Spectrum Analyzer provides all necessary measurement functions and performance to accurately characterize the signal environment in addition to clearing, detecting, identifying and locating signal interference in a lightweight, handheld instrument.  Supporting up to 4 GHz, the E8400B can detect signals of GSM and CDMA 2.0.
E8400B_Datasheet.pdf
File Size: 373 kb
File Type: pdf
Download File
E8600B Spectrum Analyzer  (9 kHz to 6 GHz)
The E8600B Spectrum Analyzer provides all necessary measurement functions and performance to accurately characterize the signal environment in addition to clearing, detecting, identifying and locating signal interference in a lightweight, handheld instrument.  The E8600B enables testing of higher frequency communications sites and signals, such as the 5.8 GHz ISM band or point-to-point and mesh radio systems operating from 4.0 to 6.0 GHz.
E8600B_Datasheet.pdf
File Size: 338 kb
File Type: pdf
Download File
